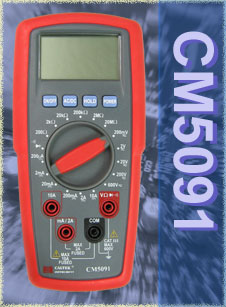

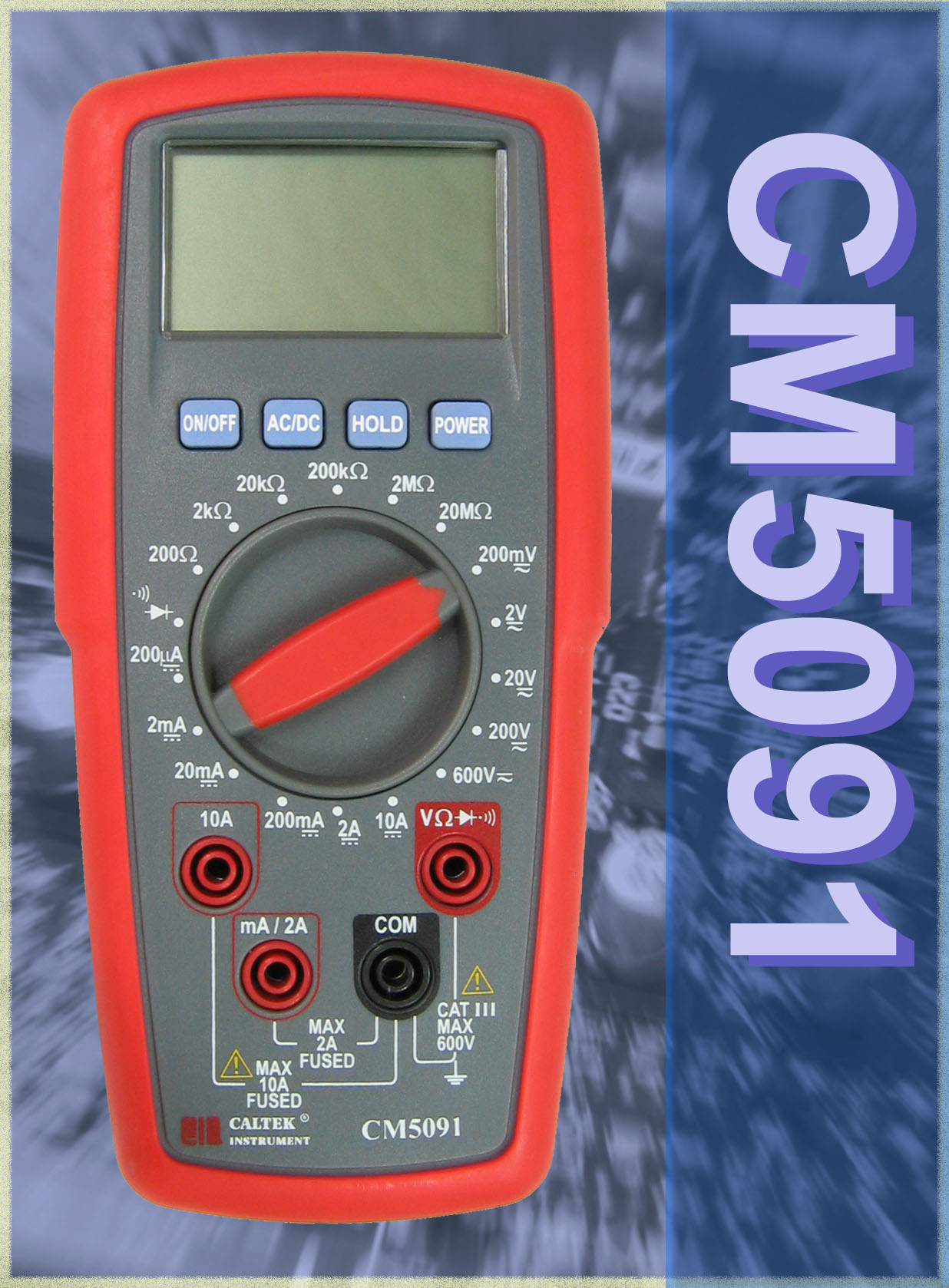

| CM5091 - 3 1/2 Digits Manual Range DMM
Click for Details |
 |
Features:
- 3 ½ digits LCD display
- Max. reading 1999
- Auto power off
- DC voltage 200mV up to 600V
- AC voltage 200mV up to 600V
- DC current 200 mA up to 10A (fused)
- Resistance 200W up to 20MW
- Diode test
- Continuity test
- Data hold
- Low battery warning display
- All ranges 600V overload protection
- Wrong terminal inserting warning beeper
- Double injection case design
- Low battery warning display
- Power single 9V NEDA 1604
- Conform to IEC1010/EN61010-1
CAT III 600V, CE-EMC & LVD
|
| |
|
| General Specifications: |
| Display: |
3 1/2 digits LCD with max. reading of 1999. |
| Polarity : |
Automatic, (-) negative polarity indication. |
| Zero adjustment: |
Automatic. |
| Over range indication: |
Only the MSD “1” is displayed. |
| Power: |
Single, standard 9 volt battery NEDA 1604, JIS 006P, IEC6F22. |
| Dimension: |
93 (W) x 194 (H) x 39.4 (D) mm. |
| Weight: |
Approx. 400 g (including battery). |
|
|
