CM5093
- 3 3/4 Digits Auto Range DMM with
  Capacitance, Frequency and
  Temperature Measurement

Click for Details

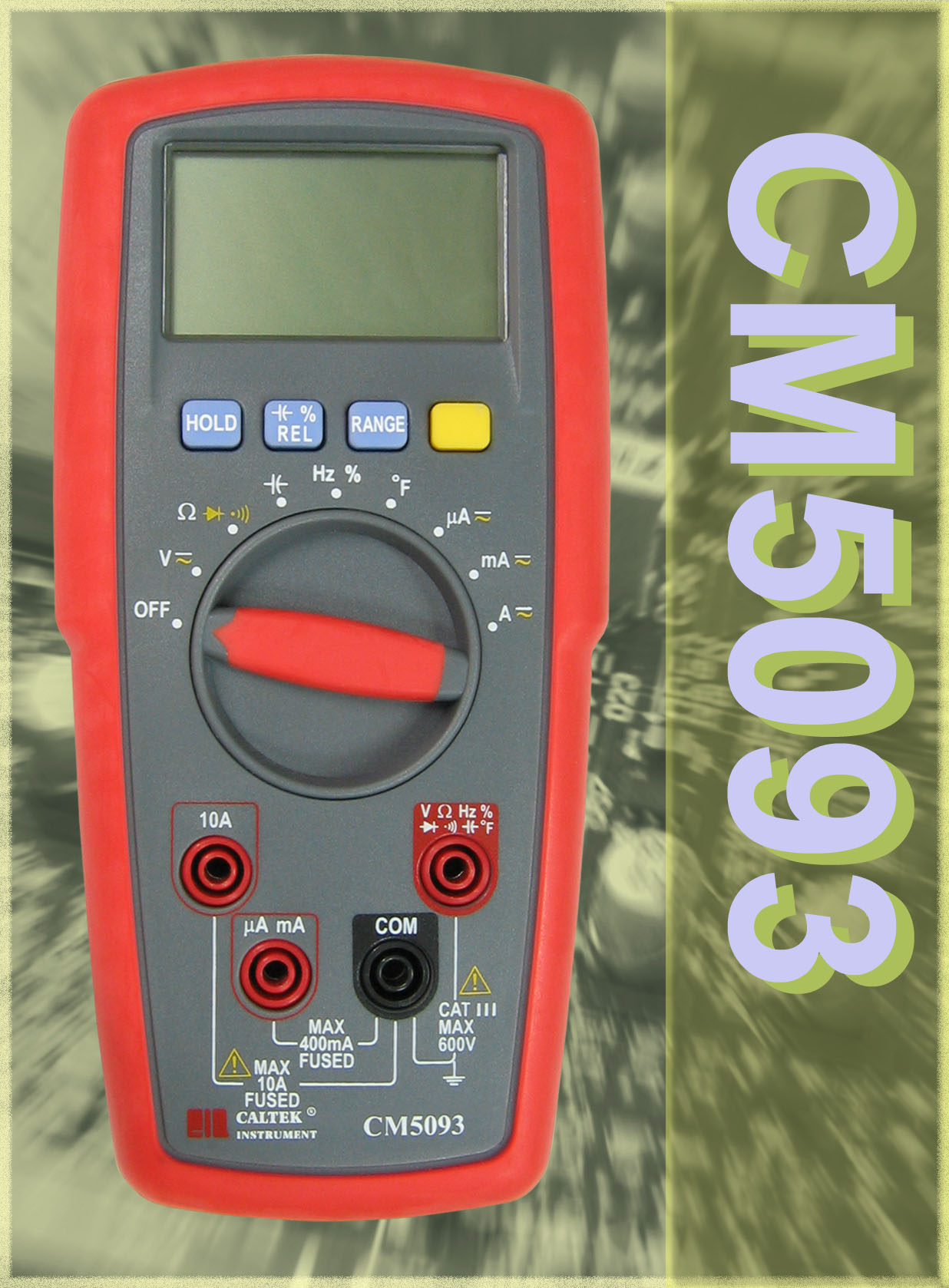

Click to enlarge Features:
  • 3 3/4 Digits LCD Display
  • Max. reading 3999
  • Auto power off
  • DC voltage 400mV up to 600V
  • AC voltage 400mV up to 600V
  • DC current 400mA up to 10A (fused)
  • AC current 400mA up to 10A (fused)
  • Resistance 400W up to 30MW
  • Capacitance 50nF up to 100mF
  • Frequency 5Hz up to 100kHz
  • Duty cycle 20% to 80%
  • Temperature measurement(℃ or ℉ )
  • Diode test
  • Continuity test
  • Data hold
  • Low battery warning display
  • All ranges 600volt overload protection
  • Wrong terminal inserting warning beeper
  • Double injection case design
  • Power single 9V NEDA 1604
  • Conform to IEC1010/EN61010
    CAT III, CE-EMC & LVD

General Specifications:
Display: 3 3/4 digits LCD with max. reading of 3999.
Polarity : Automatic, (-) negative polarity indication.
Zero adjustment: Automatic.
Over range indication: Only the MSD “OL” is displayed.
Power: Single, standard 9 volt battery NEDA 1604, JIS 006P, IEC6F22.
Dimension: 93 (W) x 194 (H) x 39.4 (D) mm.
Weight: Approx. 400 g (including battery).
