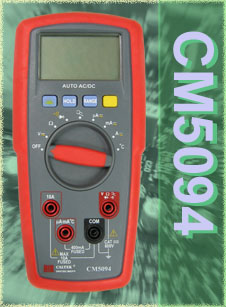

CM5094
- 3 3/4 Digits Auto Range Multimeter
with 32 segment bar graph
and Temperature Measurement Click for Details |
 |
Features:- 3 3/4 Digits LCD Display with bar graph
- Max. Reading 3260
- Backlight
- Auto AC/DC selection
- Manual range selected
- Auto power off with beeper alert
- DC voltage 320mV up to 600V
- AC voltage 3.2V up to 600V
- DC current 320mA up to 10A (fused)
- AC current 320mA up to 10A (fused)
- Resistance 320W up to 30MW
- Diode test
- Continuity test
- Data hold
- Add on clamp function
- Temperature measurement ( ℃ )
- Low battery warning display
- All ranges 600volt overload protection
- Wrong terminal inserting warning beeper
- Double injection case design
- Conform to IEC1010/EN61010
CAT III, CE-EMC & LVD
|
|
|
|
| General Specifications: |
| Display: |
3 3/4 digits LCD with max. reading of 3260
and 32 segment bar graph. |
| Polarity : |
Automatic, (-) negative polarity indication. |
| Zero adjustment: |
Automatic. |
| Over range indication: |
Only the MSD “OL” is displayed. |
| Power: |
2 x standard 1.5 volt AAA batteries. |
| Dimension: |
93 (W) x 194 (H) x 39.4 (D) mm. |
| Weight: |
Approx. 400 g (including battery). |
|
|
